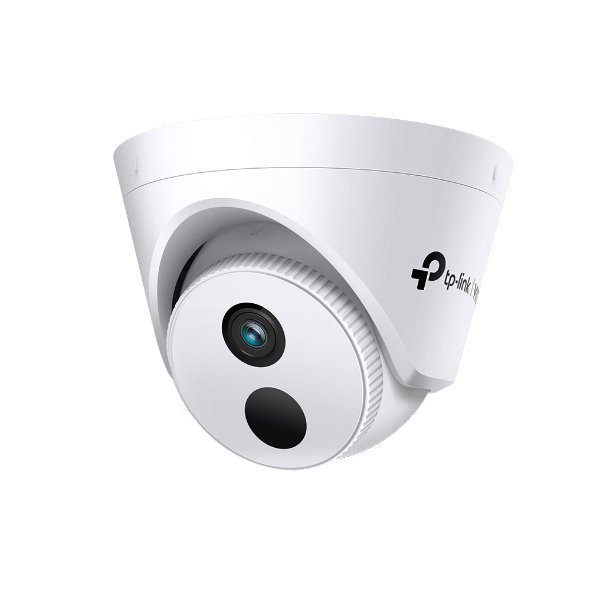

TP-LINK VIGI C400HP-4
คุณสมบัติสินค้า:
3MP Turret Network Camera SPEC: H.265+/H.265/H.264+/H.264, 1/2.7" Progressive Scan CMOS, Color/0.1 Lux@F2.4, 0 Lux with IR, 25fps/30fps (2304x1296, 2048x1280, 1920x1080, 1280x720), PoE/12V DC, Horizontal 92°, Vertical 48°, Diagonal 114°, 4 mm Fixed Lens FEATURE: Smart Detection (Motion Detection, Camera Tampering, Line-Crossing, Area Intrusion), SmartVid (Smart IR, WDR, 3D DNR, BLC), Night Vision (Up to 30 m), ONVIF, Remote Monitoring, VIGI App
หมวดหมู่ : IP Camera & ThemoScan & Drone , TP-LINK ,
แบรนด์ : TP-LINK
Share
- 3MP Ultra-High Definition: The VIGI C400 camera comes with 3MP–more than enough pixels to pick up some of the more discrete details.
- 4mm Lens: Whether you need a wide angle lens to cover enclosed spaces or a higher millimeter lens for longer distances in open spaces, C400 comes with two different lens versions to better suit your security needs.
- Smart Detection (motion detection, area intrusion, line-crossing, video tampering): Receive notifications and check feeds when someone crosses a boundary, enters an area you've set, or obstructs the camera.
- Smart IR: Keeps objects from being under-rendered when far away or overexposed when close to camera at night.
- WDR: Adjusts for lighting contrast to minimize shadowing effects and renders images true to life.
- 3D DNR: Removes abnormal pixelation to provide clearer video and eliminate distortion.
- Night Vision: A robust night vision system ensures your camera performs well in low light conditions and records what's happening for future inspection.
- H.265+: Without using any extra bandwidth, your cameras transmit compressed crystal-clear video to save disk space, ease network loads, and reduce monitoring costs without sacrificing image quality.
- PoE/12V DC: Two power supply ways not only give you more convenience but also make your wiring remarkably easy.
- VIGI App: Manage your security from the palm of your hand with the VIGI app.
| NETWORK | |
|---|---|
| Security | Password Protection, HTTPS Encryption, IP Address Filter, Digest Authentication |
| Protocol | TCP/IP, UDP, ICMP, HTTP, HTTPS, DHCP, DNS, RTSP, NTP, UPnP UDP, SSL/TLS |
| API | ONVIF |
| Simultaneous Live View | 4 Main Streams & 3 Sub-Streams, |
| GENERAL | |
|---|---|
| Package Contents | VIGI Network Camera Quick Start Guide Screws and Anchors Mounting Template |
| Certifications | CE, FCC, RCM, BSMI, VCCI, RoHS |
| Dimensions( H X W X D ) | 123 × 123 × 83 mm |
| Material | Plastic |
| Weight | 195 g |
| General Features | Two Streams, Mirror, Privacy Masks, Password Reset via E-mail, HTTP Listening |
| Power Requirements | 12V DC ± 5%, 5.5mm Coaxial Power Plug PoE (802.3af/at, class 0) |
| CAMERA | |
|---|---|
| Image Sensor | 1/2.7” Progressive Scan CMOS |
| Lens | 4 mm |
| Aperture | 4 mm: F2.4 |
| Lens Mount | M12 |
| Viewing Angle | 4 mm, horizontal FOV: 92°, vertical FOV: 48°, diagonal FOV: 114° |
| Day/Night Mechanism | IR Cut Filter |
| IR Working Distance | 30m |
| Minimum Illumination | Color: 0.1 Lux@F2.0; 0 Lux with IR |
| Pan/Tilt Range | Pan: 0° to 360°, Tilt: 0° to 85°, Rotate: 0° to 360° |
| Digital Noise Reduction | 3D DNR |
| WDR | DWDR |
| VIDEO/IMAGE | |
|---|---|
| Video Compression | Main stream: H.265/H.264 Sub-Stream: H.265/H.264 |
| Frame Rate & Resolutions | Frame Rate: 1fps, 5fps, 10fps, 15fps, 20fps, 25fps, 30fps Resolution: 2304x1296, 2048x1280, 1920x1080, 1280x720, 704x576, 640x480, 352x288, 320x240 |
| Image Settings | Mirror, Brightness, Contrast, Saturation, Sharpness, Exposure, WDR, White Balance Adjustable by Client Software |
| Image Enhancement | BLC/3D DNR/Prevent Overexposure to Infrared Light |
| Video Bit Rate | 64 Kbps to 6 Mbps |
| SMART FEATURE-SET | |
|---|---|
| Smart Event | Area Intrusion Detection, Line-Crossing Detection |
| Basic Event | Motion Detection, Video Tampering Detection, Exception ( illegal login) |
| Linkage Method | Trigger Notification: ONVIF, HTTPS |
| Region of Interest | 1 Region |
| INTERFACES | |
|---|---|
| Network Interface | 1 RJ45 10/100M Self-Adaptive Ethernet Port |
| Button | - |
| Video Output | - |
